- 1,200kg Electric Tugger

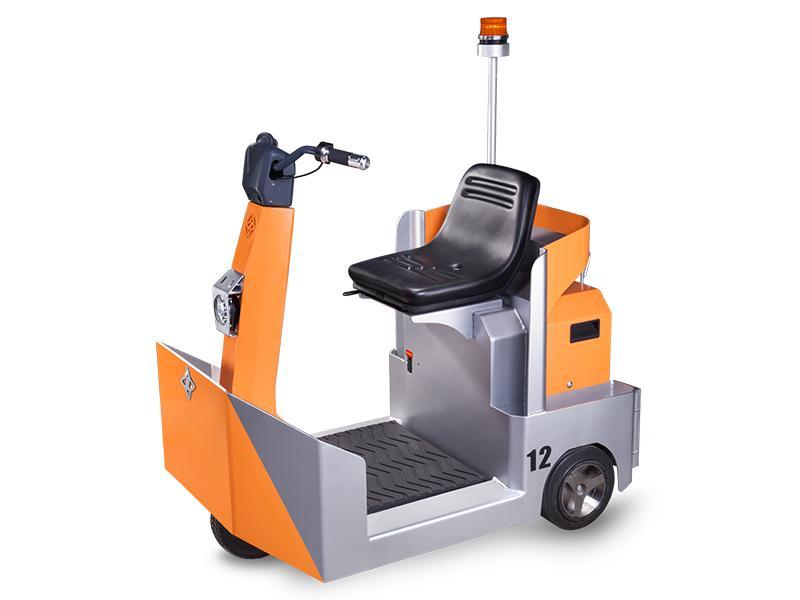

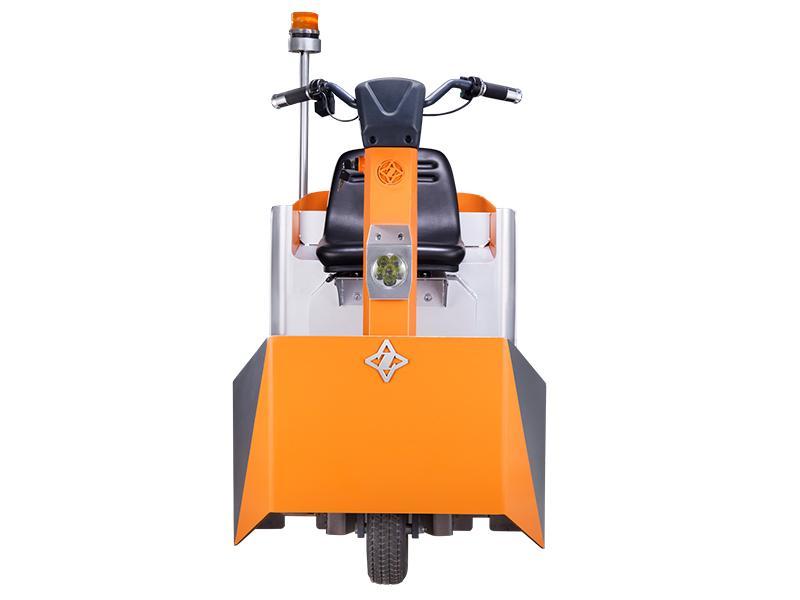

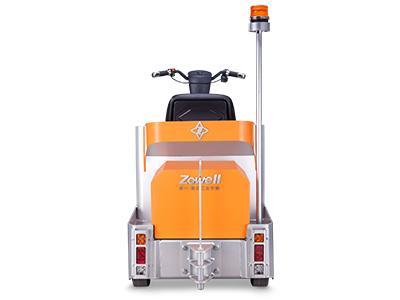

1,200kg Electric Tugger
This product has been discontinued and removed from our shelves.
Basic information
Rated load: 1200 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001
Detail features

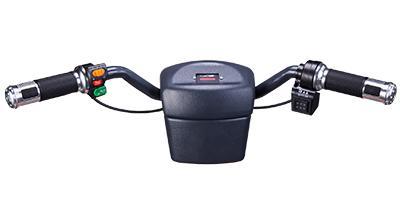

1. Motorbike handle
The electric tugger is equipped with a motorbike style handle which is intuitive and familiar to control. The operation is easy and turning is highly flexible.
2. Adjustable seat
The seat can be adjusted forward and backward so that it can be suitable for drivers of different sizes.
3. Adjustable traction pin
The length of the traction pin can be adjusted to satisfy requirements of various traction forces.
| Features | |
| Product type | |
| Driving mode | Electronic |
| Operating mode | Sitting type |
| Rated load (kg) | 1200 |
| Rated traction force (N) | 295 |
| Wheel track (mm) | 860 |
| Weight | |
| Tugger weight (with standard battery) (kg) | 350 |
| Wheel | |
| Tyre | Rubber tyre |
| Front wheel dimension | 250 × 80 |
| Back wheel dimension | 254 × 102 |
| Wheel number (x=driving wheel, front wheel/back wheel) | 1 × /2 |
| Front gauge (mm) | 0 |
| Track rear (mm) | 630 |
| Basic dimension | |

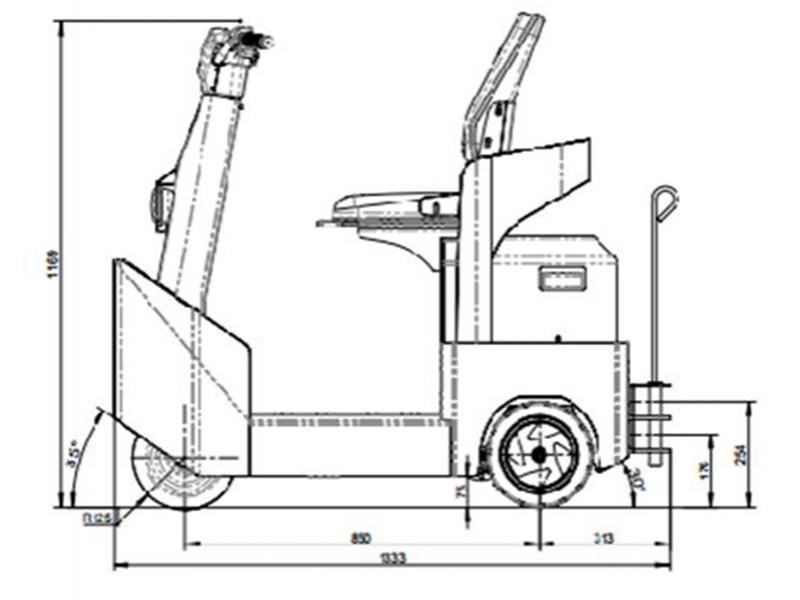

| Total height (mm) | 1195 |
| Total length (mm) | 1343 |
| Total width (mm) | 720 |
| Ground clearance (mm) | 75 |

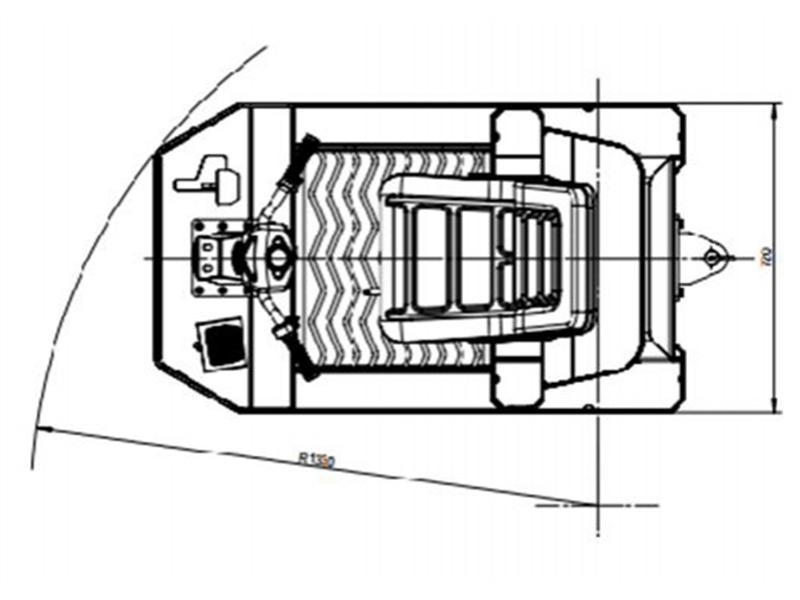

| Turning radius (mm) | 1330 |
| Performance | |
| Moving speed full load/no load (km/h) | 7/8 |
| Brake mode | Hydraulic brake |
| Motor | |
| Driving motor power (kW) | 1 |
| Storage battery voltage/capacity (V/Ah) | 3 × 12/80 |
| Other | |
| Controller | CURTIS |
| Whole tugger noise dB (A) | < 70 |
