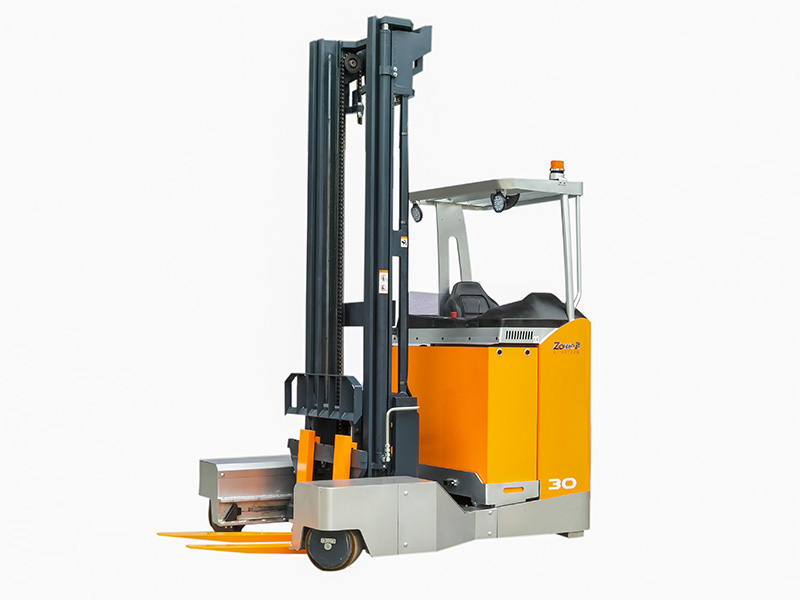

This multi-directional reach truck features a variable fork. It does not require right-angle turns, even when working in narrow aisles. This particular forklift offers an outstanding maneuverability and efficiency.

Basic information
Max. load Capacity: 3, 000 kg
Max. Lifting Capacity: 10, 000 mm
Operator: Sit-Down
6 Driving modes can switch freely.

Safety: This forklift is equipped with an all-wheel steering display system and all wheel braking system, as well as a real-time monitoring of the driving wheel position to ensure a stable, reliable performance.

Stability: Ride-on three pivots and equipped with an imported controller, it features an excellent control performance and stability.

Efficient: This forklift enters the lane as long as 10,000mm for material pickup. Required passage lengths are reduced by 1/3 compared to ordinary forward moving forklifts, allowing for a doubling of material storage in the warehouse.

Energy saving: With an all-wheel electronic steering, this forklift saves energy in an energy reduction, thus improving the vehicle service life with no risk of oil leaks.

Ergonomics: It features a finger switch / integrated handle control, HMI human-computer interaction interface, and a reasonable functional area division to reduce driver fatigue intensity.

• The electric 3 wheel counterbalance forklift truck adopts a 3-point supporting system. The turning radius is 1690mm. The forklift can realize smooth turning to navigate narrow warehouse layouts.
• When the wide cargo fork frame + quad fork structure is selected, the corresponding load curve is reduced 250 kg based on standard vehicles.
• When the adjustable fork structure is selected, the corresponding load curve is reduced 400 kg based on a standard vehicle.
• When adjusting the fork, the adjustment range can be customized according to the actual length of the cargo :
  a. For cargo with a length of 6-8 meters, the recommended adjustment range is 430-2500mm.
  b. For cargo longer than 8 meters, customize the long material handling solution according to the specific conditions of the customer site.
  c. For cargo with a length of 3-6 meters, the recommended adjustment range is 430-2100mm.
  d. For rigid cargo with a length of fewer than 3 meters, select the standard fork rack.
