Load: 2000 kg
Max lifting height: 12000 mm
Fork length: 1150 mm
HS code: 8427102000
1. Wider area for the leg
The legroom of the operating position is ample, allowing the operator to move flexibly. They will feel comfortable without worrying about being cramped.

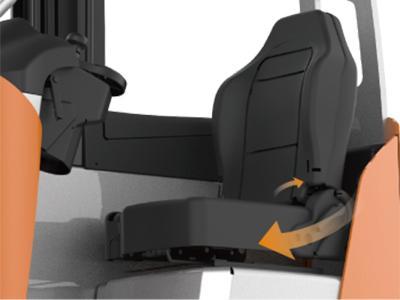

2. Sitting type operation
The seat is adjustable. The soft seat can relieve fatigue and provide a safe and comfortable driving experience for operators.

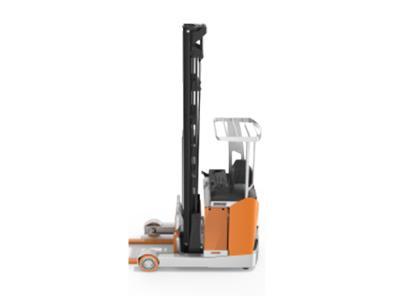

3. Design of low center of gravity
The design of low center of gravity can ensure stability of the truck so that it is anti-overturning even in complex working conditions.
4. Lifting height limit
5. Turning speed limiting device
The precise high speed limiting turning control technology can prevent side overturning, thus protecting the goods from dropping.
6. Good lifting ability
The max lifting height is 12000mm which can satisfy the requirements of goods stacking in certain height.
7. Front moving function
The fork can move forward for 590cm which can reduce turning radius of the truck as well as ensuring running stability.
8. This reach truck has a small turning radius which is only 1700mm, so that it can move flexibly even in tight warehouse and workshop areas.
9. The fork can tilt forward and backward for easy loading and unloading of goods and material, thus improving the transporting stability of the reach truck.

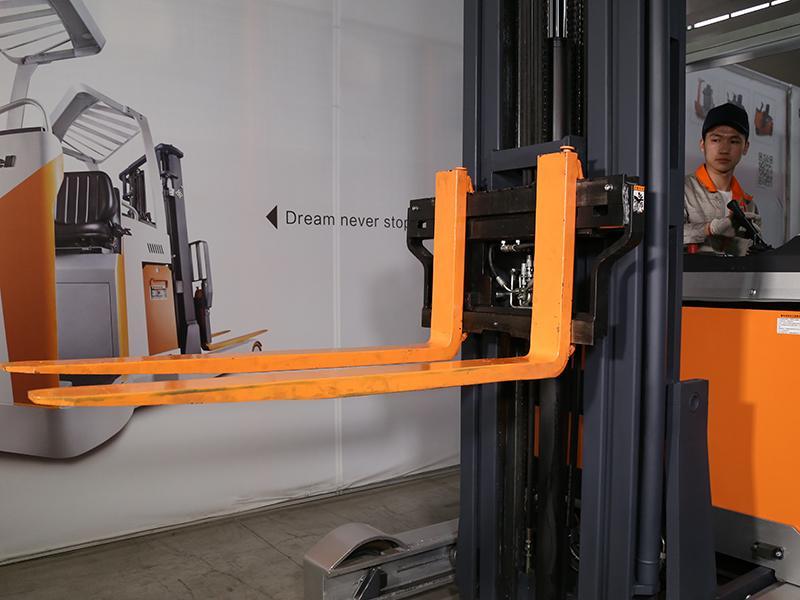

10. Forged fork
The width of the fork can be adjusted within the range of 200-760mm. It is suitable for working conditions with single side pallets, double side pallets, or no pallet.

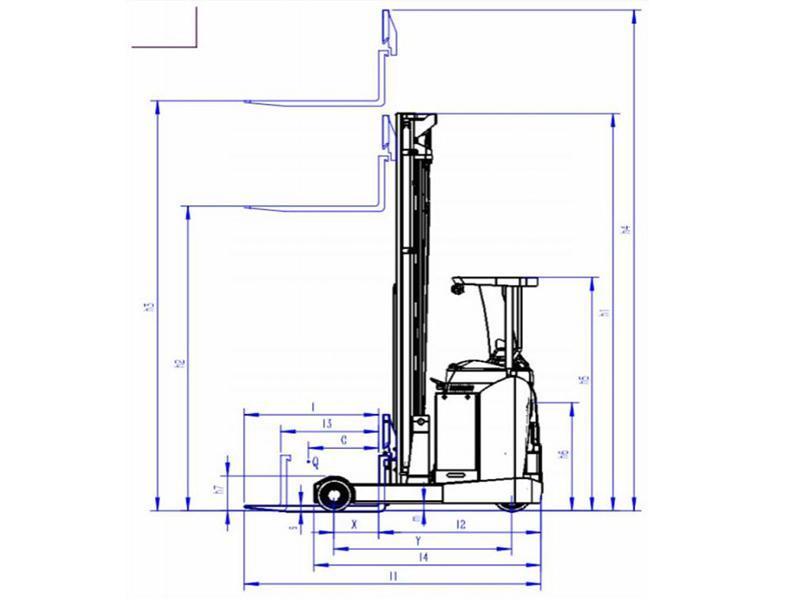

|Rated load Q (kg)||2000|
|Load center C (mm)||600|
|Distance between center of bogie wheel to vertical end of the fork, retracted gantry/extended gantry X (mm)||208/385|
|Wheel base Y (mm)||1520|
|Dead load (without battery) (kg)||3058|
|No load on axle (bogie/drive) (kg)||1270/2496|
|Full load on axle with retracted gantry (bogie/drive) (kg)||3852/2214|
|Full load on axle with extended gantry (bogie/drive) (kg)||5300/766|
|Driving tyre dimension (mm)||Φ343x140|
|Bogie tyre dimension (mm)||Φ300x100|
|Tyre number (x=driving tyre) driving tyre/bogie tyre||1x/2|
|Front gauge (mm)||/|
|Track rear (mm)||1146|
|Closed height h1 (mm)||3726|
|Overhead guard height h5 (mm)||2190|
|Seat height h6 (mm)||1000|
|Wheel arm height h7 (mm)||327|
|Total length l1 (mm)||2535|
|Fork length l2 (mm)||1385|
|Total width b1/b2 (mm)||1250/1230|
|Fork dimension s/e/l (mm)||50/100/1150|
|Fork frame ISO2328, level/type A, B||2/A|
|Fork frame width b3 (mm)||784|
|Spacing of forks b4 (mm)||200-760|
|Inner width of truck leg b5 (mm)||920|
|Reach distance (l3)||590/555|
|Min ground clearance (mm)||80|

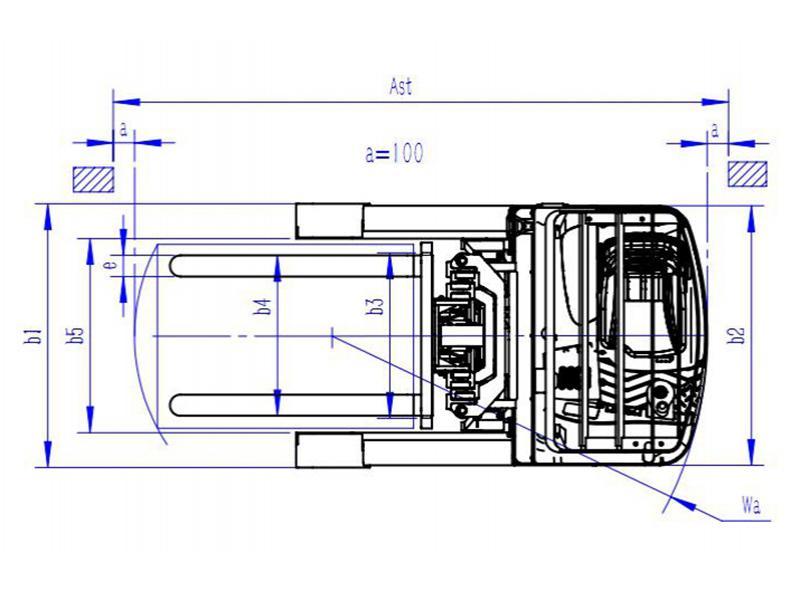

|Right angle stacking channel width, pallet 1000x1200 (1000 along the side of the fork) Ast (mm)||2829|
|Right angle stacking channel width, pallet 800x1200 (1200 along the side of the fork) Ast (mm)||2878|
|Turning radius (mm)||1770|
|Truck length (mm)||1940|
|Fork tilting angle (°)||2/4|
|Moving speed full load/no load (km/h)||10/10|
|Lifting speed full load/no load (mm/s)||0.3/0.4|
|Descending speed full load/no load (mm/s)||0.5/0.4|
|Max gradeability full load/no load (5min)||5/8|
|Driving motor power (60min) (kw)||6|
|Lifting motor power S3-15% (kw)||13|
|Storage battery voltage/capacity (V/Ah)||48/600|
|Storage battery weight (kg)||1008|
|System pressure (Mpa)||16.5|
|Noise dB (A)||＜75|
|Free lifting height||h2||mm||2872||2712||2552||2392||2232||2072||1912|
|Max height of the gantry during working||h4||mm||9854||9354||8854||8354||7854||7354||6854|
