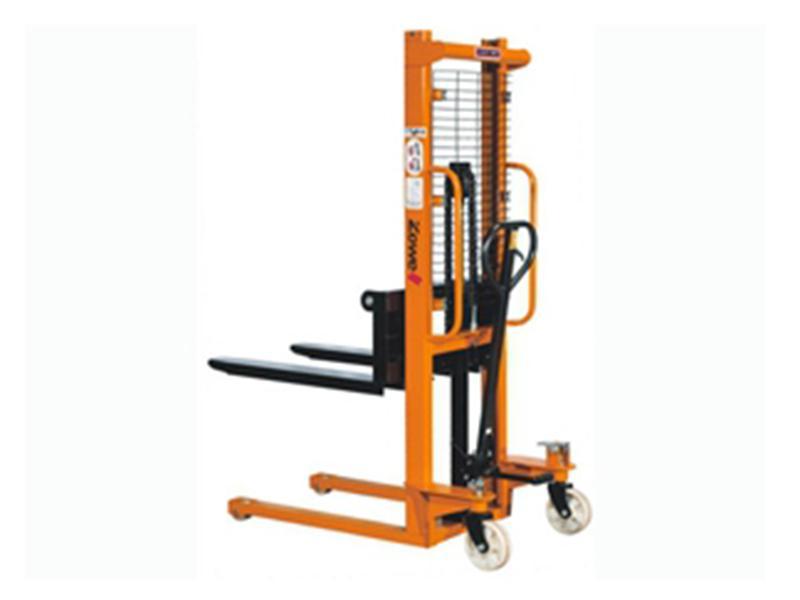

While using the hand hydraulic stacker, the bearing fork is pushed into holes on the pallet. Lifting and descending of the pallet loaded with goods is then carried out using a manual hydraulic system, with transportation completed using manual pulling. The hand hydraulic stacker is a common piece of logistics equipment, used for the transportation, loading, unloading and stacking of goods. This stacker is made of professional material with an appearance that is designed to be simple and compact. It is a flexible and durable solution for movement of goods, and effectively reduces labor intensity, while improving transportation efficiency. It is the best modern assistant for product transporting, loading and unloading.
|Rated load (Kg)||1000||1500||1000||1000|
|Lifting height (mm)||1600||1600||2000||2500|
|Min fork height (mm)||85||85||85||85|
|Fork length (mm)||1000||1000||1100||1100|
|Adjustable outer width of the fork (mm)||330-740/550||330-740/550||330-740/550||330-740/550|
|Front wheel (mm)||Φ74×70||Φ74 × 70||Φ74×70||Φ74×70|
|Back wheel (mm)||Φ180×50||Φ180×50||Φ180×50||Φ180×50|
|Net weight (Kg)||224||240||280||310|
|Package dimension (mm)||1400×780×1850||1350×800×1870||1650×800×1900||1650×800×1900|
