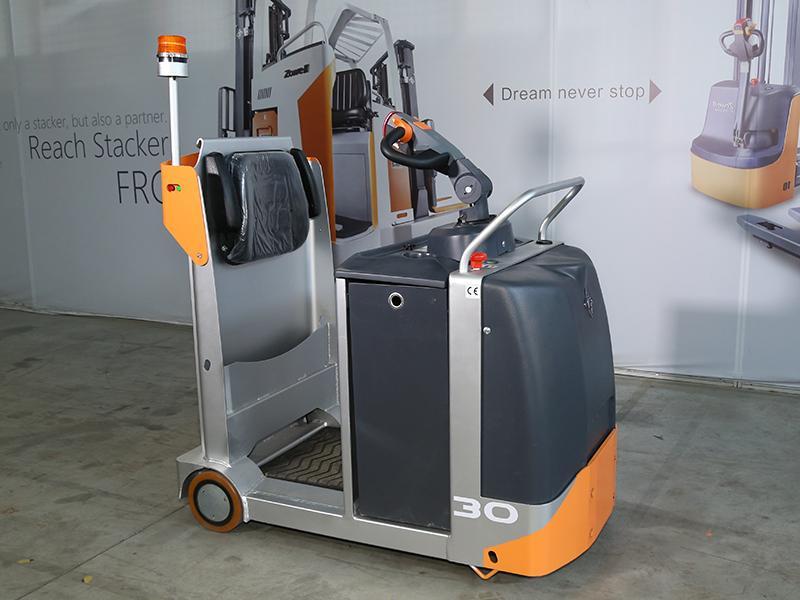

Rated load: 3000/4000/5000 kg
Operating mode: standing type operation
HS code: 8709111000

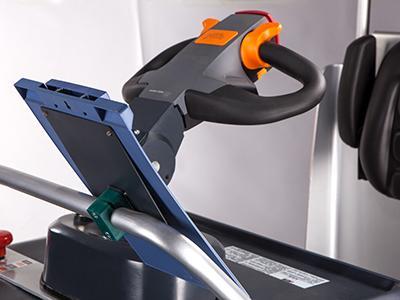

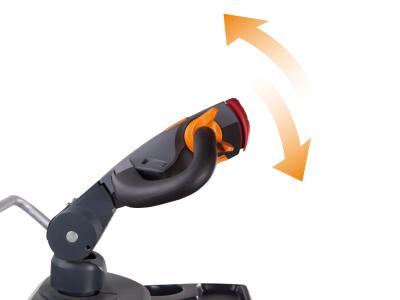

1. Adjustable handle
The handle can be adjusted within a large range which can be suitable for different driving habits of different drivers by improving driving comfort.
2. Prepositive folder
The required documents can be placed at the front of the tugger, thus improving working efficiency.

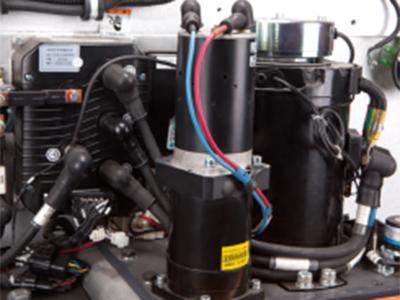

3. Part maintenance
Remove the front cover, the control system and driving system can be clearly accessible for easy maintenance.

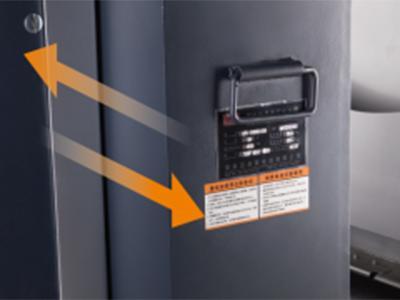

4. Side loading and unloading of storage battery
Side loading and unloading of storage battery can realize easy daily maintenance such as inspection and fluid replacement without lifting. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.

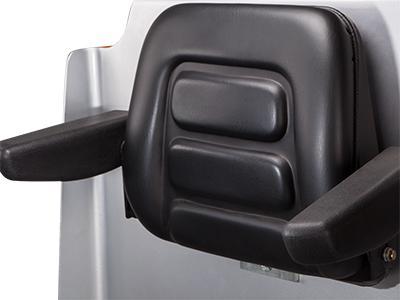

5. The wide backrest is equipped with an armrest on both side so that the operators can be more comfortable and safe when leaning on the backrest.

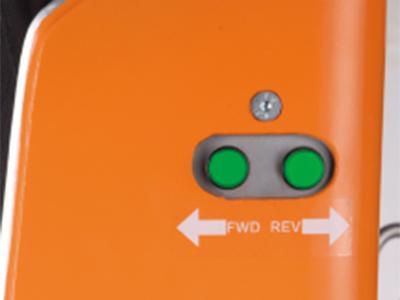

6. Short distance micro motion
There is one inching switch on both sides of the whole tugger, realizing easy docking of draft gear and carts. This can improve working efficiency of the tugger.
7. The storage box adopts a humanized design. It can be used to store papers and tools etc.

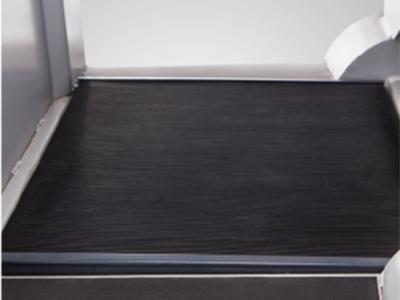

8. Floating pedal
This pedal features anti-slipping and shock absorption, thus optimizing driver safety and comfort.
|Wheel||PU wheel||PU wheel||PU wheel|
|Wheel number (x=driving wheel, front wheel/back wheel)||1x/2||1x/2||1x/2|
|Rated load |
|Rated tractive force (60min working system) |
|Max tractive force full load/no load (5min working system) |

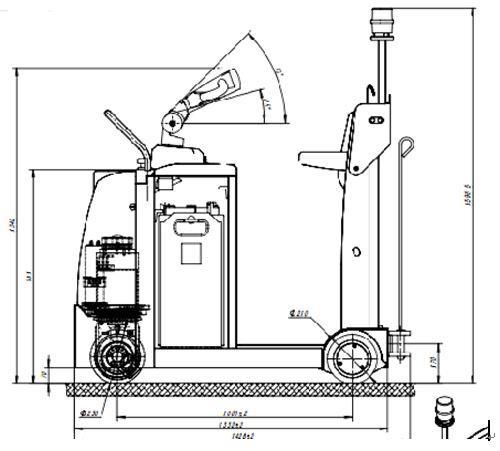

|Wheel base (+/-5mm) |
|Moving speed no load/full load (+/-5%) (km/h)||7/5.5||7/5.5||7/5.5|
|Gradeability full load/no load (5min working system) (%)||6.4/15||4.8/15||4/15|
|Whole tugger length (with/without towing hook) (mm)||1585/1428||1585/1428||1585/1428|
|Whole tugger width (mm)||800||800||800|
|Whole tugger height (mm)||1266||1266||1266|
|Handle height at moving position (max/min) (mm)||1020/1120||1020/1120||1020/1120|
|Front gauge (mm)||0||0||0|
|Track rear (mm)||695||695||695|
|Min turning radius (mm)||1200||1200||1200|
|Towing hook height (mm)||160/210/260||160/210/260||160/210/260|
|Ground clearance (wheel base center) (mm)||69||69||69|
|Dead load (with standard battery) (+/-10%) (kg)||700||775||865|
|Load on axle no load (front/back) (kg)||376/324||465/310||540/325|
|Front wheel dimension (mm)||Ø 230 x82||Ø 230 x82||Ø 230 x82|
|Back wheel dimension (mm)||Φ210x85||Φ210x85||Φ210x85|
|Brake type||electromagnetic|| || |
|Driving motor power (kW)||AC 2.0||AC 2.0||AC 3.0|
|Storage battery voltage/capacity (V/Ah)||24/240||24/325||24/400|
|Storage battery weight (+/-10%) (kg)||210||270||330|
|Drive control||MOSFET Control||MOSFET Control||MOSFET Control|
|Whole tugger noise |
|< 70||< 70||< 70|
