Load: 1000/1200 kg
Max lifting height: 3500 mm
Fork length: 1150 mm
HS code: 8427102000

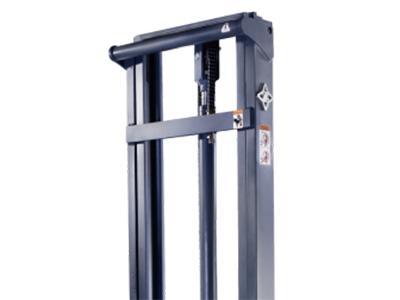

1. Mast which can provide wide field of vision
The hydraulic cylinder is located at the right-middle side of the stacker, thus providing a wider field of vision for the operator.

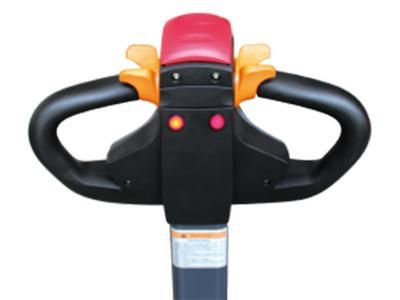

2. Double speed switch
The speed of this electric stacker can be freely switched between normal speed and slow speed. The operators can choose slow speed to realize slow moving of the stacker. This is especially suitable for new operators who are not familiar with the operation of this equipment.
3. Lateral vertical moving
The stacker can move without pulling the handle. By pressing down the straight moving button, the stacker can move slowly. This is suitable for working in narrow aisles and other limited spaces.

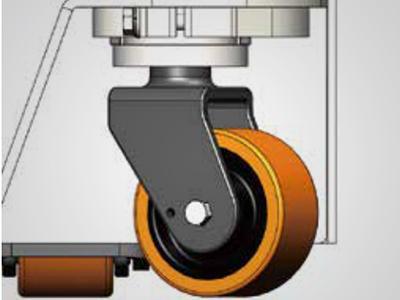

4. Adjustable balance and supporting wheel
The adjustable balance wheel features strong stability, so that the operation can be more stable, safer and more reliable.

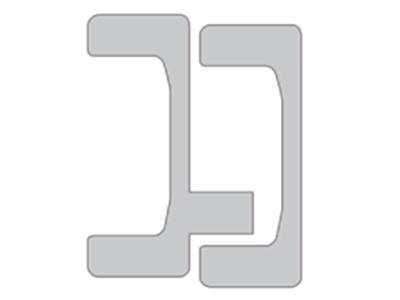

5. Solid channel steel mast
Compared with the bending finished iron metal mast, the channel steel mast is more solid and durable, more stable and safer.

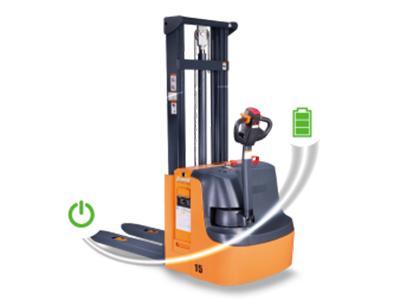

6. Intelligent sleep mode
When the stacker is not in use for long time, the intelligent sleep mode will be automatically initiate to save battery power and cost.

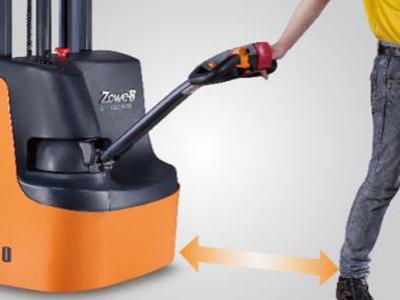

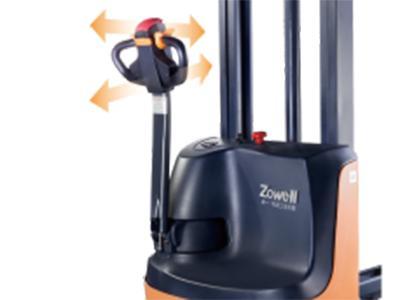

7. Handle of the best one-step length
The long operating handle adopts ergonomic design. The max ground clearance is 1305mm and the min ground clearance is 715mm, so that it quite easy to use. During normal operation, the operators should be one-step away from the stacker, so that their feet will not get caught by the wheel, thus ensuring safety of the operators.

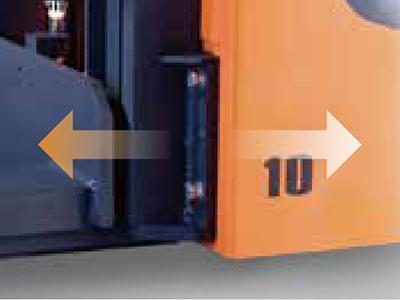

8. Split type mast
The fabricated connection of the mast and stacker frame can realize easy installation and changing of the mast as necessary. The working device and moving device are easily disassembled and changed.
9. Beautiful and tiny appearance

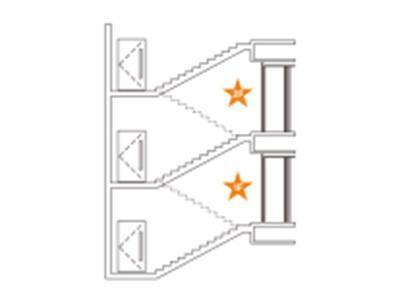

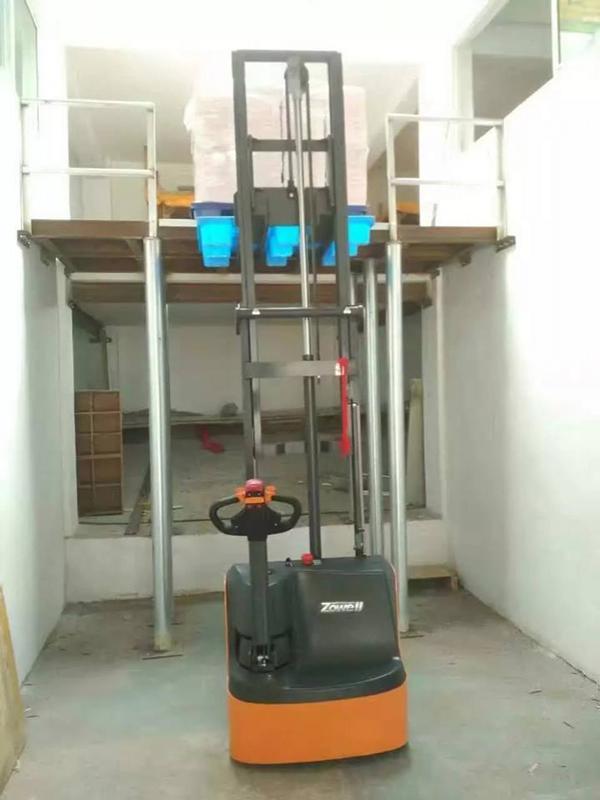

The base design: the front base is 600mm in length so that it is flexible and suitable for working in narrow channels. It is the ideal choice for trans-floor working.
|Rated load Q (kg)||1000/1200|
|Load center C (mm)||600|
|Wheel base Y (mm)||1202|
|Dead load (without battery)(kg)||494|
|Load on axle (load side/drive side)(kg)||952/639|
|No load on axle (load side/drive side)(kg)||144/404|
|Driving wheel dimension (mm)||Φ210 × 70|
|Bogie wheel dimension (mm)||Φ80 × 70|
|Balance wheel dimension (mm)||Φ125 × 60|
|Wheel number (front/back) (x=driving wheel)||1x-1/4|
|Front gauge (mm)||481|
|Rear track (mm)||400|

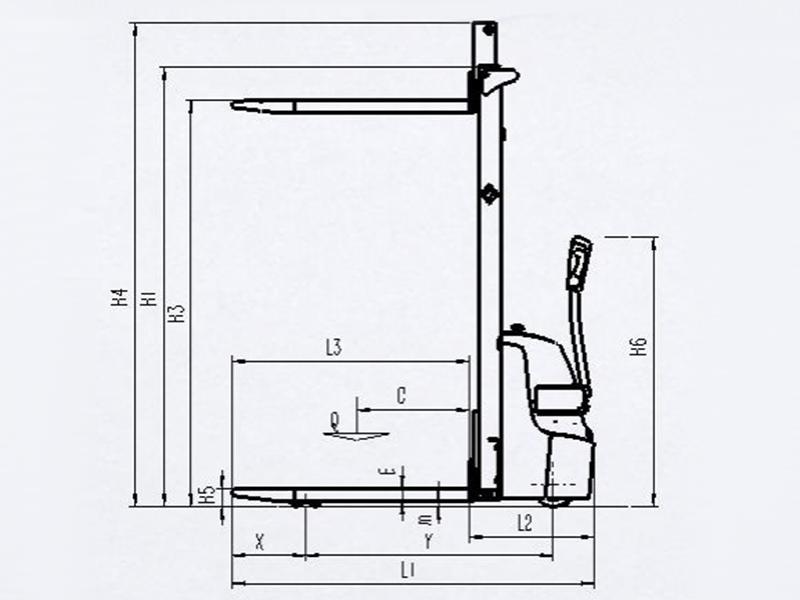

|Total height (min fork height) h1 (mm)||2000|
|Free lifting height h2 (mm)||/|
|Lifting height h3 (mm)||3000|
|Max height (max fork height) h4 (mm)||3457|
|Fork ground clearance (min) h5 (mm)||86|
|Handle ground clearance (max/min) h6 (mm)||1305/715|
|Total height L1 (mm)||1756.2|
|Distance from front end of the fork to front stacker L2 (mm)||606.2|
|Total width b1 (mm)||800|
|Fork dimension s/e/l (mm)||160/61/1150|
|Outer width of fork b3 (mm)||560|
|Min ground clearance m (mm)||27|

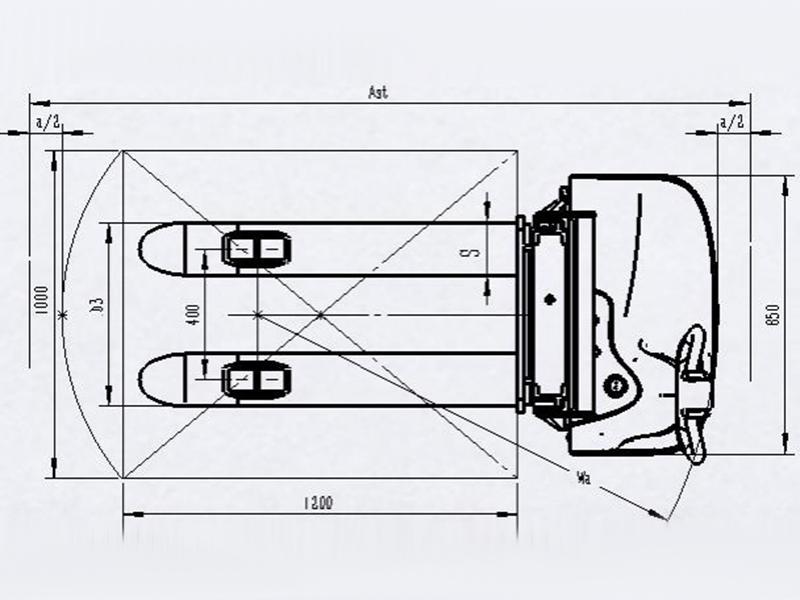

|Right angle stacking channel width, pallet 1000x1200 (1200 along the side of the fork) Ast (mm)||2244|
|Turning radius Wa (mm)||1400|
|Traction speed full load/no load (km/h)||4/4.5|
|Lifting speed full load/no load (mm/s)||120/200|
|Descending speed full load/no load (mm/s)||80/90|
|Max gradeability full load/no load (%)||5/8|
|Driving motor power (kw)||0.65|
|Lifting motor power (kw)||2.2|
|Storage battery voltage/capacity (V/Ah)||2 × 12/80|
|Storage battery weight (kg)||27 × 2|
|Control method||Field-effect tube control|
|Whole stacker noise dB (A)||< 70|
|Mast type||Lifting height||Total height with min fork height||Free lifting height||Total height with max fork height|
|h3 (mm)||h1 (mm)||h2 (mm)||h4 (mm)|
