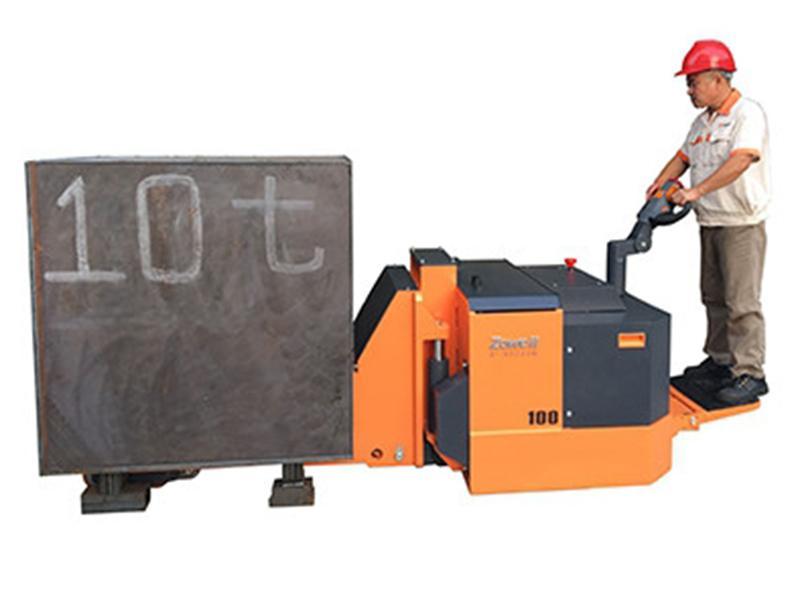

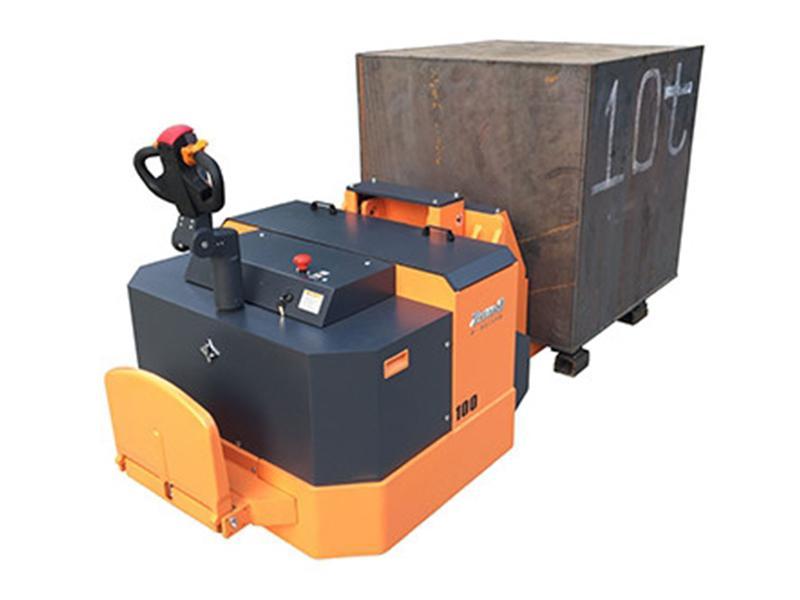

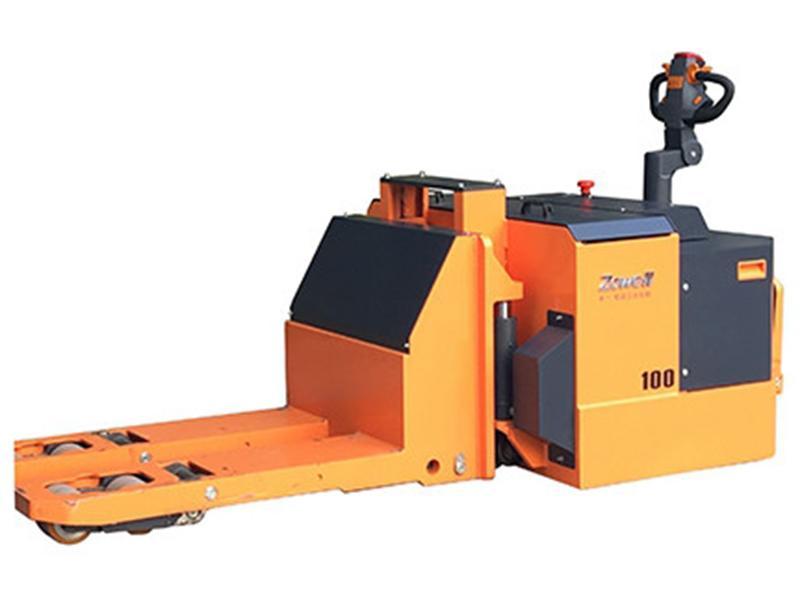

Load: 10000 kg
Fork length: 1500 mm
HS code: 8427109000
1. Electronic control system
The electronic control system used by this truck is sensitive, ensuring a high reliability. There are optional controller selections, including Cutris, ZAPI or PG.
2. Regenerative braking
The regenerative braking control system can transform and store the kinetic energy during braking, thus saving energy. This also increases the endurance mileage, reduces brake pad wear and reduces the failure rate and usage costs.
3. The inside of the driving unit is equipped with a floating mechanism to ensure truck reliability and stability, meaning the truck runs in a stable manner without over turning.
4. Multifunctional handle from FREI, Germany
The multifunctional handle is imported from Germany. The operators can control the moving speed easily through the use of the handle, which is equipped with an emergency reverse button. This effectively protects the operator against injury in the event of an accident. The handle can achieve braking in both vertical and horizontal positions, thus improving the tugger safety.
5. Emergency reversing button on the handle
This truck can carry out emergency reversing. During the backward movement, once the back of the operator touches something, the operator will naturally hit the reverse button on the handle with their body. The truck will then immediately reverse, thus protecting the operator against injury.
6. Emergency power-off switch
The power can be rapidly cut off in an emergency to ensure safety.
7. Electric power steering system (EPS)
Compared with the traditional mechanical steering, EPS helps the driver with turning by using an electronic control device to produce auxiliary power at a relative level and direction according to the torque signal and speed signal. This makes operation by the driver more convenient and precise, so that movement is stable and reliable.
|Rated load (kg)||10000|
|Load center (mm)||750|
|Rear overhang (mm)||-|
|Wheel base (mm)||-|
|Dead load (without battery)(kg)||2500|
|Full load on axle (front/back) (kg)|| |
|No load on axle (front/back) (kg)|| |
|Driving wheel dimension (mm)||Φ310×140|
|Bogie wheel dimension (mm)||Φ150×60|
|Balance wheel dimension (mm)||Φ150×60|
|Wheel number (front/back) (x=driving wheel)||1X-4/8|
|Front gauge (mm)||622|
|Rear track (mm)||830|

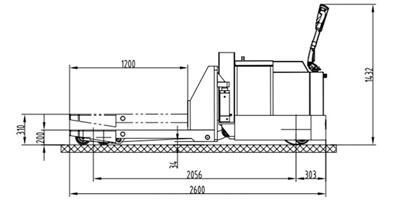

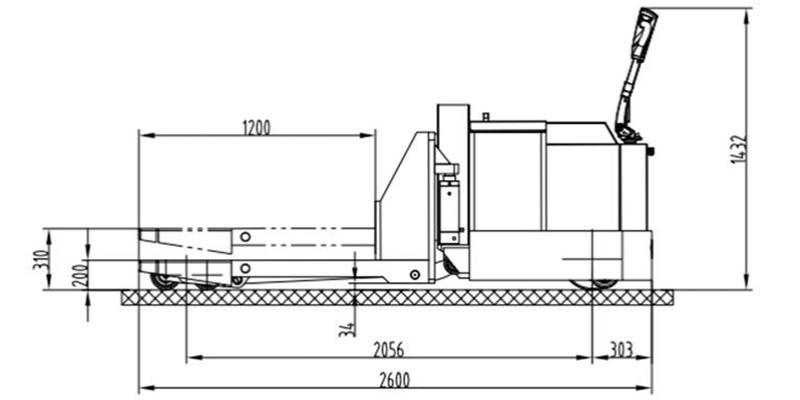

|Total height (mm)||1432|
|Lifting height (mm)||310|
|Fork ground clearance (min) (mm)||200|
|Handle ground clearance (max/min) (mm)||1353/1077|
|Total height (folded pedal) (mm)||3090|

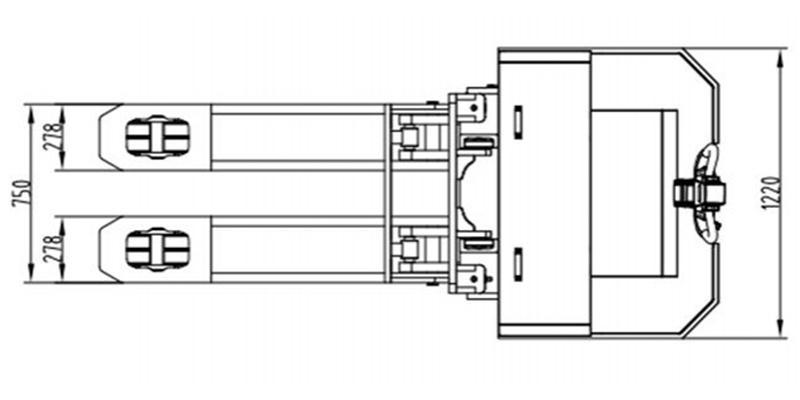

|Total width (mm)||1220|
|Fork dimension (width/length) (mm)||278/1500|
|Outer width of fork (mm)||900|
|Min ground clearance (mm)||33|
|Moving speed full load/no load (km/h)||3.6/4|
|Lifting speed full load/no load (mm/s)||28/40|
|Descending speed full load/no load (mm/s)||45/40|
|Max gradeability full load/no load (%)||2.5/8|
|Driving motor power (kw)||4.5|
|Lifting motor power (kw)||6.3|
|Storage battery voltage/capacity (V/Ah)||48/320|
|Storage battery weight (kg)||-|
|Control method||Field-effect tube control|
|Whole truck noise dB (A)||< 70|
